Clock Tree Synthesis (CTS) in VLSI: Concepts and Technique

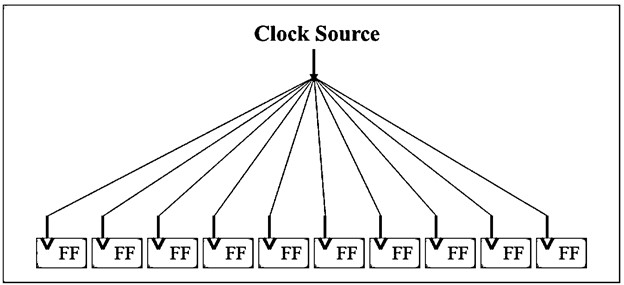

Clock Tree Synthesis (CTS) is a pivotal phase in the physical design of Very Large Scale Integration (VLSI) circuits. It aims to deliver the clock signal from a source, such as a Phase-Locked Loop (PLL) or a clock generator, to all sequential elements like flip-flops and latches in a controlled and synchronized manner. Effective CTS is essential for maintaining the integrity of the timing and synchronization across the entire chip. The overall objective of CTS is to minimize skew, balance latency, reduce power consumption, and ensure signal integrity. With the growing complexity of modern VLSI systems and shrinking technology nodes, CTS has become a sophisticated and challenging aspect of the digital design flow.

Importance of Clock Tree Synthesis

Clock Tree Synthesis (CTS) is vital because it directly affects the functional accuracy, power efficiency, and overall performance of a VLSI design. Properly executed CTS minimizes timing violations, such as setup and hold violations, which can lead to unreliable data storage and erroneous signal propagation. It is an integral part of achieving timing closure, ensuring that all paths in the design meet their timing constraints under various conditions. Achieving timing closure is increasingly challenging with the scaling of technology nodes, where variability in manufacturing can cause significant deviations in circuit behavior.

CTS also plays a crucial role in power management. As digital designs scale down and their complexity increases, power consumption becomes a critical concern. Dynamic power consumption, largely influenced by clock switching, can be optimized through efficient CTS strategies like clock gating and multi-corner multi-mode (MCMM) analysis. Reducing power not only improves battery life in portable devices but also mitigates heat dissipation challenges, which are crucial in high-performance computing systems.

Furthermore, signal integrity is maintained through effective CTS. Poorly synthesized clock trees can result in glitches, excessive jitter, and electromagnetic interference (EMI), which compromise the chip’s functional reliability. The growing complexity of clock domains, multiple power islands, and diverse operating modes further demand advanced CTS methodologies. Asynchronous interfaces and mixed-signal components add to the challenge, necessitating a deep understanding of timing, noise margins, and cross-talk effects.

Ultimately, the functional accuracy of the design depends on a well-optimized clock tree. Improper CTS can result in race conditions, metastability, and unreliable data transfers between clock domains. In complex System-on-Chip (SoC) designs, the integration of intellectual property (IP) blocks with diverse clocking requirements makes CTS more intricate. Therefore, understanding the importance of CTS is fundamental to achieving a robust, power-efficient, and high-performance VLSI design.

Key Concepts in Clock Tree Synthesis

Understanding the key concepts of CTS is essential to grasp its impact on the design process. These concepts include clock skew, clock latency, clock jitter, insertion delay, and duty cycle. Each of these parameters influences the timing, power, and overall efficiency of a VLSI design.

Clock Skew: Clock skew is the variation in arrival times of the clock signal at different sequential elements. It is classified into positive skew, negative skew, and zero skew. Positive skew occurs when the capturing flip-flop receives the clock signal later than the launching flip-flop. Negative skew happens when the capturing flip-flop gets the clock signal earlier, potentially causing hold time violations. Zero skew, ideally the target, ensures that the clock reaches all elements simultaneously, minimizing timing discrepancies.

Clock Latency: Clock latency is the delay experienced by the clock signal as it propagates from the clock source to the sink. It has two components: source latency and network latency. Source latency is the delay from the clock generator to the clock tree root, while network latency is the delay from the root to the clock sink. High clock latency can lead to timing violations and deteriorate performance, especially in designs operating at high frequencies.

Clock Jitter: Clock jitter is the deviation of the clock’s actual arrival time from its expected time. Excessive jitter can result in setup and hold time violations, leading to data instability and unreliable operation. It can be caused by power supply noise, crosstalk, and process variations.

Insertion Delay: Insertion delay refers to the time taken for the clock signal to travel from the clock source to a register. Minimizing this delay is crucial for high-speed designs, as excessive insertion delay can cause timing violations and degrade system performance.

Duty Cycle: The duty cycle of a clock signal is the ratio of its high time to its total period. Maintaining a balanced duty cycle is essential for synchronous circuits, ensuring proper operation of flip-flops and reducing the likelihood of timing issues.

Techniques for Clock Tree Synthesis

CTS employs several techniques to optimize clock distribution and ensure reliable timing. These techniques include H-Tree structures, balanced clock trees, useful skew management, clock mesh, and hybrid approaches.

H-Tree Structure: The H-Tree is a symmetric and hierarchical approach that minimizes skew by delivering the clock signal to all sinks uniformly. It is widely used in synchronous designs where low skew is critical. However, it may consume significant area and power due to extensive buffering.

Balanced Clock Tree (BCT): BCT is designed to balance the clock network by placing buffers strategically to minimize skew and latency. This method is effective for designs with moderate complexity.

Useful Skew Management: Useful skew is intentionally introduced to optimize setup and hold times across critical paths. By leveraging this technique, designers can mitigate timing violations and enhance overall performance.

Clock Mesh and Hybrid Approaches: Clock mesh networks offer higher robustness and minimal skew, making them ideal for high-speed designs. Hybrid approaches combine the efficiency of tree structures with the reliability of mesh networks, balancing power, area, and timing.

Multi-Corner Multi-Mode (MCMM) Analysis: MCMM techniques analyze clock distribution under various process corners, voltages, and temperatures. This method is crucial for designs with stringent performance requirements.

Challenges in Clock Tree Synthesis

CTS faces numerous challenges, such as managing process variations, handling increased complexity, managing multiple power domains, and overcoming physical constraints. Addressing these challenges requires sophisticated EDA tools, precise modeling, and deep expertise.

FAQs

Q1: What are the consequences of excessive clock skew? A: Excessive skew can lead to setup and hold violations, resulting in timing failures and potential data corruption.

Q2: What are popular EDA tools for CTS? A: Tools like Cadence Innovus, Synopsys ICC2, and Mentor Graphics Olympus-SoC are widely used for CTS.

Conclusion

Clock Tree Synthesis is a crucial step in the VLSI design flow, influencing timing closure, power optimization, and overall chip performance. Effective CTS techniques enable the realization of high-speed, power-efficient, and reliable integrated circuits.
