Types of Control Systems
Control systems can be classified into two main categories:
| Type | Description |
|---|---|

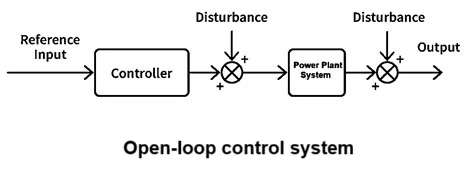

| Open-Loop Control Systems | In open-loop systems, the control action is not influenced by the output. These systems work on pre-set commands and do not use feedback to correct the output. Examples include simple devices like electric heaters. |
| Closed-Loop Control Systems | Closed-loop systems use feedback to compare the actual output to the desired output. Based on the error signal, adjustments are made to the input to bring the system to the desired state. Examples include automatic temperature control in HVAC systems. |
Components of a Control System
A control system consists of several key components that work together to regulate and manage the process:
- Input: The desired reference or setpoint value, such as a target temperature, speed, or voltage.
- Controller: The controller is responsible for processing the input and feedback signal, calculating the necessary correction to the process. Common types of controllers include PID controllers and fuzzy logic controllers.
- Process: The physical system being controlled. This could be anything from an electrical motor to a complex power plant.
- Actuator: The actuator is a device that enacts the control signal on the process, such as a motor or valve.
- Sensor: Sensors monitor the output of the process and send real-time feedback to the controller, allowing the system to adjust.
- Feedback Loop: A continuous loop that transmits the output signal back to the input, enabling real-time adjustments to be made to the process.
How Control Systems Work
Control systems operate by manipulating inputs to achieve desired outputs, while continuously monitoring the system's performance. The working principle involves the following steps:
- Input Signal: The user or operator sets a desired output value (setpoint). This could be a speed, voltage, or temperature, depending on the system.
- Controller Action: The controller compares the input to the current output (feedback). Based on this comparison, it calculates an error signal and uses a specific control strategy (such as PID) to generate an output command.
- Actuation: The actuator receives the control command and makes the necessary adjustments to the process. For instance, a motor might increase its speed, or a valve might adjust to control flow rate.
- Feedback: Sensors continuously monitor the system output and send this information back to the controller, creating a feedback loop that allows real-time adjustments. If any discrepancies are found, the system corrects them.
- Stabilization: This continuous process of monitoring and adjusting ensures the system remains stable and meets the desired performance criteria.
Control Strategies in Electrical Engineering
Various strategies are employed to design control systems, each suited to different types of applications:
- PID Control: The most commonly used control strategy, PID controllers use three parameters—Proportional (P), Integral (I), and Derivative (D)—to minimize error and ensure precise control.
- State-Space Control: This method involves modeling the system using a set of differential equations, offering a more flexible and powerful way to control complex systems.
- Fuzzy Logic Control: Used for non-linear and uncertain systems, fuzzy logic controllers work by approximating human decision-making processes to control systems that lack precise mathematical models.
- Model Predictive Control (MPC): MPC uses a predictive model of the system to optimize control actions based on future predictions, making it effective for large-scale systems like power plants.
Applications of Control Systems
Control systems are applied in numerous industries, providing solutions for automation, energy management, and system optimization:
- Power Systems: In power generation, control systems regulate the output of generators, maintain grid stability, and optimize energy distribution.
- Automation and Robotics: In robotics, control systems regulate the movement of robotic arms, conveyor belts, and other machinery to perform tasks with precision.
- Electric Motor Control: Control systems adjust the speed, position, and torque of electric motors in applications like fans, pumps, and automotive engines.
- Renewable Energy: Control systems are essential in managing solar panels, wind turbines, and other renewable energy sources to maximize efficiency and output.
Challenges and Future of Control Systems
Despite their widespread applications, control systems face several challenges, including:
- Non-linearity: Many systems exhibit non-linear behavior, making control difficult without advanced methods like fuzzy logic or model predictive control.
- Time Delays: Delays in sensor data or actuator response can lead to instability in the system, requiring advanced control strategies to mitigate this issue.
- Complexity: Complex, multi-variable systems can be difficult to control, often requiring sophisticated modeling and adaptive control techniques.
The future of control systems lies in the integration of AI and machine learning, enabling systems to learn from past data and adapt to changing conditions. Additionally, IoT-based control systems and advancements in wireless communication will pave the way for smarter, more efficient systems.
FAQs
What is the role of feedback in a control system?
Feedback allows a control system to continuously monitor and adjust the output, ensuring that it stays within the desired range and responds to disturbances effectively.
What is a PID controller?
A PID controller is a type of feedback controller that uses three components—Proportional, Integral, and Derivative—to calculate control actions and minimize errors in the system.
What are some examples of control systems?
Examples of control systems include automatic temperature regulators in HVAC systems, speed controllers in motors, and power grid management systems in electrical grids.
Why are control systems important in electrical engineering?
Control systems are critical in electrical engineering because they ensure the optimal performance of systems, improve energy efficiency, and enhance safety and stability in power generation and automation applications.
