What is a GIS Substation?

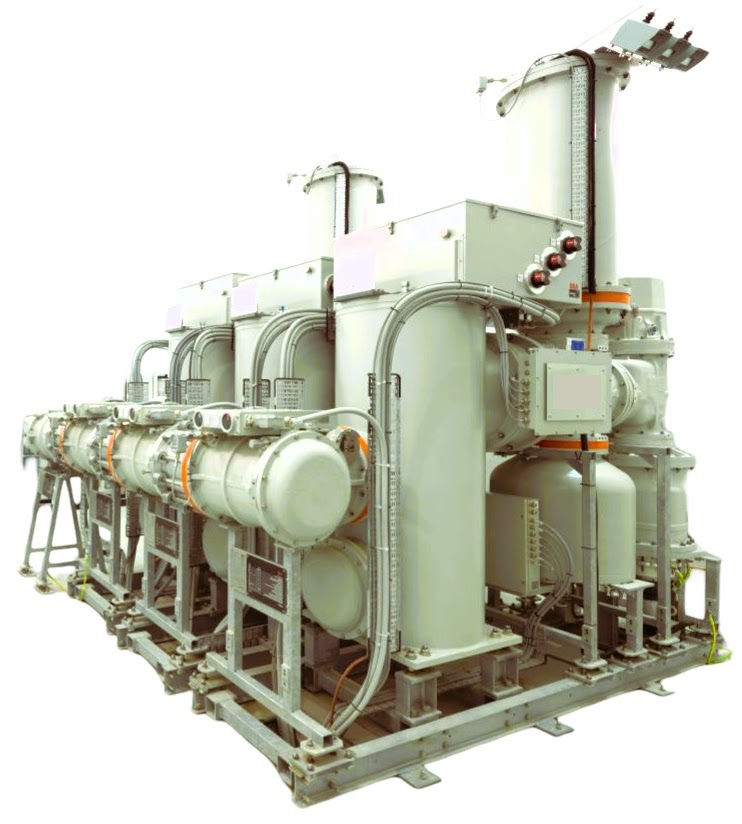

A Gas Insulated Substation (GIS) is a high-voltage substation in which the major electrical equipment is enclosed within a grounded metallic enclosure. These enclosures are filled with sulfur hexafluoride (SF₆) gas, which serves as an insulating and arc-quenching medium. This design reduces the footprint of the substation, enhances safety, and offers better protection against environmental conditions.
Advantages of GIS Substations
GIS substations offer several advantages over traditional substations:
- Space Efficiency: GIS substations require up to 90% less space compared to AIS, making them ideal for urban areas.
- Enhanced Safety: The use of SF₆ gas insulation improves safety by containing arcs and reducing the risk of faults.
- High Reliability and Minimal Maintenance: Due to their encapsulated design, GIS substations have lower maintenance needs.
- Environmentally Resilient: GIS units are shielded from external weather conditions, ensuring stability in extreme climates.
Key Components of a GIS Substation
GIS substations are composed of multiple critical components, each with a specific role in the system.
1. Circuit Breakers
GIS circuit breakers are used to interrupt fault currents and prevent damage to the substation equipment. In a GIS, these are enclosed in an SF₆-filled chamber, allowing for fast arc extinction and minimal erosion of contacts.
2. Disconnectors and Earthing Switches
These switches are responsible for isolating circuits for maintenance and grounding sections of the system when necessary. In GIS systems, they are housed within sealed gas-filled enclosures, ensuring that they are protected from external environmental conditions.
3. Instrument Transformers
Instrument transformers, such as Current Transformers (CTs) and Voltage Transformers (VTs), are used to measure current and voltage levels. They are essential for protection, control, and metering systems and ensure accurate measurements for relay and monitoring systems.
4. Surge Arresters
Surge arresters are vital for protecting the GIS from transient overvoltages that may occur due to lightning strikes or switching operations. In GIS substations, surge arresters are generally installed at the incoming line and outgoing feeders.
Working Principle of GIS Substations
The primary function of a GIS substation is to regulate and control the voltage and current of electricity being transmitted and distributed to different areas. Here’s a breakdown of how a GIS substation works:
- Power Input: Power enters the GIS from transmission lines, typically at high voltages.
- Voltage Adjustment: Instrument transformers adjust the voltage level as required, reducing it for metering or for lower-voltage distribution.
- Current Control and Interruption: Circuit breakers control the flow of electricity, isolating sections during faults and enabling maintenance without interrupting the entire system.
- Isolation and Earthing: Disconnectors isolate sections of the GIS during maintenance, while earthing switches provide a grounded path in case of faults, ensuring safety and protection of equipment.
- SF₆ Gas Insulation: The SF₆ gas provides excellent insulation, preventing electrical discharges and containing faults within the enclosure.
Role of SF₆ Gas
The SF₆ gas plays a dual role in a GIS substation:
- Insulation: SF₆ is a potent insulating material, which means it prevents electrical discharges between conductors inside the GIS.
- Arc Quenching: When circuit breakers operate, arcs are generated. SF₆ absorbs the energy from these arcs, quenching them and restoring the system to normal operation.
GIS Substation Design and Installation
Designing a GIS substation requires precise planning and engineering due to its compact and complex structure. The process generally involves:
- Site Assessment: Examining the land area and determining if the terrain is suitable for GIS installation.
- Electrical Design: Engineering the layout of the circuit breakers, transformers, disconnectors, and other components within the GIS.
- Gas Handling and Sealing: Ensuring that SF₆ gas compartments are fully sealed and filled with the correct pressure levels to maintain insulation efficiency.
- Assembly and Commissioning: Assembling each GIS module on-site and performing rigorous testing to confirm that the equipment meets all specifications before it is commissioned.
Maintenance of GIS Substations
Maintenance in GIS substations is minimal due to the sealed enclosure of the equipment. However, essential maintenance tasks include:
- SF₆ Gas Monitoring: Periodically checking the gas pressure and purity to ensure effective insulation.
- Contact Inspection: Inspecting the contacts within circuit breakers for signs of erosion or corrosion.
- Temperature and Leakage Detection: Using infrared cameras to detect hot spots and ultrasonic or gas leakage detectors to identify any potential leaks.
Safety Measures in GIS Substations
Safety is paramount in GIS substations due to the high-voltage equipment and SF₆ gas used:
- Proper Sealing: Ensuring no gas leakage, as SF₆ is a greenhouse gas.
- Routine Inspections: Regular inspection schedules prevent any undetected faults that could lead to safety risks.
- Fire Safety Protocols: Implementing fire detection and suppression systems to mitigate fire risks in case of equipment failure.
Applications of GIS Substations
GIS substations are used in various applications, including:
- Urban Areas: GIS substations are ideal for dense urban areas where space is limited.
- Remote Locations: Their compact design and ability to withstand extreme weather conditions make GIS substations suitable for remote or harsh environments.
- High-Voltage Transmission: GIS technology is used for efficient and secure high-voltage transmission, particularly in power generation plants and substations.
Conclusion
GIS substations offer an advanced, reliable solution to modern power distribution needs. By utilizing SF₆ gas for insulation and arc quenching, GIS substations deliver high performance in compact spaces, providing a robust infrastructure for reliable electricity transmission. Their continued evolution is essential to meet the growing demands of urbanization and industrial expansion.
Frequently Asked Questions (FAQs)
1. What is the primary function of GIS substations?
The primary function of GIS substations is to control, monitor, and regulate the transmission of high-voltage electricity, ensuring reliable power distribution while occupying minimal space.
2. What are the benefits of using SF₆ gas in GIS substations?
SF₆ gas provides excellent electrical insulation and arc quenching properties, making it ideal for high-voltage electrical systems in compact substations.
3. How do GIS substations contribute to environmental safety?
GIS substations are environmentally safe due to their sealed design, which prevents leaks of SF₆ gas and reduces environmental impact while providing a safe working environment.
4. Are GIS substations more expensive than AIS?
Although GIS substations require higher initial investment, they are more cost-effective in the long run due to lower maintenance, smaller land requirements, and greater reliability.
5. How often do GIS substations require maintenance?
GIS substations require minimal maintenance, typically involving monitoring SF₆ gas levels and inspecting key components, making them low-maintenance alternatives to conventional substations.
