How Do Step-up and Step-down Transformers Work?

Transformers are indispensable components in electrical engineering, serving as the backbone of the modern power grid. They allow for the efficient transmission and distribution of electrical energy across vast distances. Among the most commonly used types of transformers are step-up and step-down transformers. These devices play critical roles in the functionality of power systems, ensuring that electricity is delivered efficiently and safely from generation points to end users. In this discussion, we will delve into how these transformers work, their underlying principles, and their specific applications, particularly in the context of a solar power plant.

The Basics of Transformer Operation

A transformer is a static electrical device that transfers electrical energy between two or more circuits through electromagnetic induction. The fundamental components of a transformer include the core, primary winding, and secondary winding. The core, usually made of laminated iron or steel, provides a path for the magnetic flux. The primary winding is the coil connected to the input voltage, and the secondary winding is connected to the output load.

Transformers operate on the principle of Faraday’s Law of Electromagnetic Induction, which states that a change in magnetic flux through a circuit induces an electromotive force (EMF) in the circuit. When an alternating current (AC) flows through the primary winding, it generates a time-varying magnetic field around the winding. This magnetic field, concentrated by the core, induces a voltage in the secondary winding. The magnitude of the induced voltage depends on the number of turns in the windings and the input voltage.

Step-Up Transformers: Amplifying Voltage for Efficient Transmission

Step-up transformers are designed to increase the voltage from a lower level to a higher level. They are typically used in power generation stations, including solar power plants, to prepare electricity for transmission over long distances. The key reason for stepping up the voltage is to reduce energy losses during transmission.



Working Principle

In a step-up transformer, the number of turns in the secondary winding is greater than the number of turns in the primary winding. The relationship between the input (primary) and output (secondary) voltage is given by the turns ratio:

$$\frac{V_s}{V_p} = \frac{N_s}{N_p}$$

Where:

• $V_s$ = Secondary voltage
• $V_p$ = Primary voltage
• $N_s$ = Number of turns in the secondary winding
• $N_p$ = Number of turns in the primary winding

If the secondary winding has ten times more turns than the primary winding, the output voltage will be ten times the input voltage. For example, if a 1,000-volt input is applied to a primary winding with 100 turns, and the secondary winding has 1,000 turns, the output voltage will be 10,000 volts.

Applications in Solar Power Plants

In a solar power plant, photovoltaic (PV) panels generate direct current (DC) electricity, which is then converted into alternating current (AC) by inverters. However, the AC voltage generated is usually low, ranging from 600V to 800V, depending on the system design. This low voltage is not suitable for long-distance transmission due to significant I²R (current squared times resistance) losses in the transmission lines. To mitigate these losses, a step-up transformer is used to increase the voltage to higher levels, such as 11kV, 33kV, or even 132kV, depending on the grid requirements.

This high-voltage electricity is then transmitted over long distances to a substation closer to the load centers. By stepping up the voltage, the current in the transmission lines is reduced, which in turn reduces resistive losses (as these losses are proportional to the square of the current). This efficiency is crucial for minimizing energy wastage and ensuring that as much generated power as possible reaches the end users.

Step-Down Transformers: Reducing Voltage for Safe Distribution

While high voltage is essential for efficient transmission, it is not suitable for direct use by consumers. Step-down transformers are employed to reduce the voltage to safer, usable levels before it reaches homes and businesses. These transformers are typically located at substations and at various points in the distribution network.

Working Principle

The operation of a step-down transformer is similar to that of a step-up transformer, with the main difference being the turns ratio. In a step-down transformer, the primary winding has more turns than the secondary winding. Consequently, the secondary voltage is lower than the primary voltage:

$$\frac{V_s}{V_p} = \frac{N_s}{N_p}$$

If the primary winding has 1,000 turns and the secondary winding has 100 turns, the voltage is stepped down by a factor of 10. For instance, if 33,000 volts are supplied to the primary winding, the output voltage will be 3,300 volts.

Applications in the Distribution Network

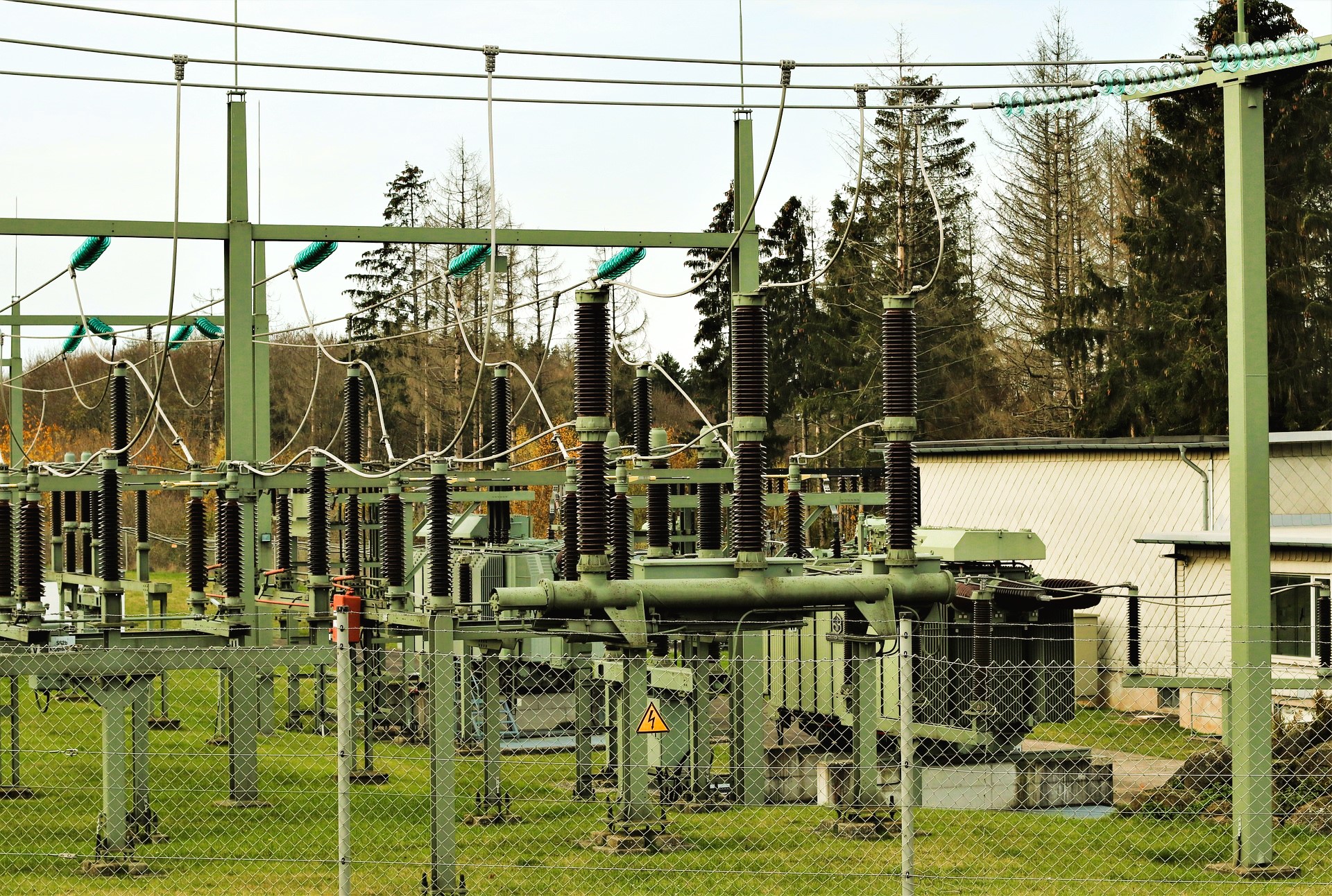

After electricity has been transmitted over long distances at high voltages, it arrives at a substation where a step-down transformer reduces the voltage to a level suitable for distribution. For instance, the voltage might be reduced from 132kV to 33kV or 11kV, depending on the network design. Further step-down transformers located closer to residential or commercial areas then reduce this voltage to the standard levels required for consumer use, typically 230V for single-phase and 400V for three-phase supply.

In the context of a solar power plant, after electricity has been stepped up for transmission, it is eventually stepped down before reaching end users. This ensures that the electricity delivered to homes and businesses is at a safe and usable voltage level.

The Role of Transformers in Renewable Energy Integration

The increasing shift towards renewable energy sources like solar and wind has brought transformers, especially step-up transformers, to the forefront of power system design. Solar power plants, in particular, rely heavily on step-up transformers to connect to the grid. The variability and distributed nature of renewable energy sources necessitate efficient voltage conversion to ensure stable and reliable power supply.

As solar energy becomes a more significant part of the energy mix, the design and efficiency of transformers are critical. Advanced transformers with higher efficiency and better cooling systems are being developed to handle the unique challenges posed by renewable energy sources, such as variable output and the need for rapid response to changes in generation.

Conclusion

Step-up and step-down transformers are essential for the efficient and safe operation of power systems. By stepping up voltage levels, step-up transformers minimize energy losses during transmission, ensuring that electricity can be transported over long distances from generation points, like solar power plants, to consumption areas. Step-down transformers, on the other hand, make this electricity usable by reducing the voltage to levels safe for consumer use.

In the context of renewable energy, particularly solar power, transformers play a crucial role in integrating these variable energy sources into the grid. As the demand for clean energy grows, the importance of efficient and reliable transformers will only increase, making them a vital component in the journey towards a sustainable energy future.
