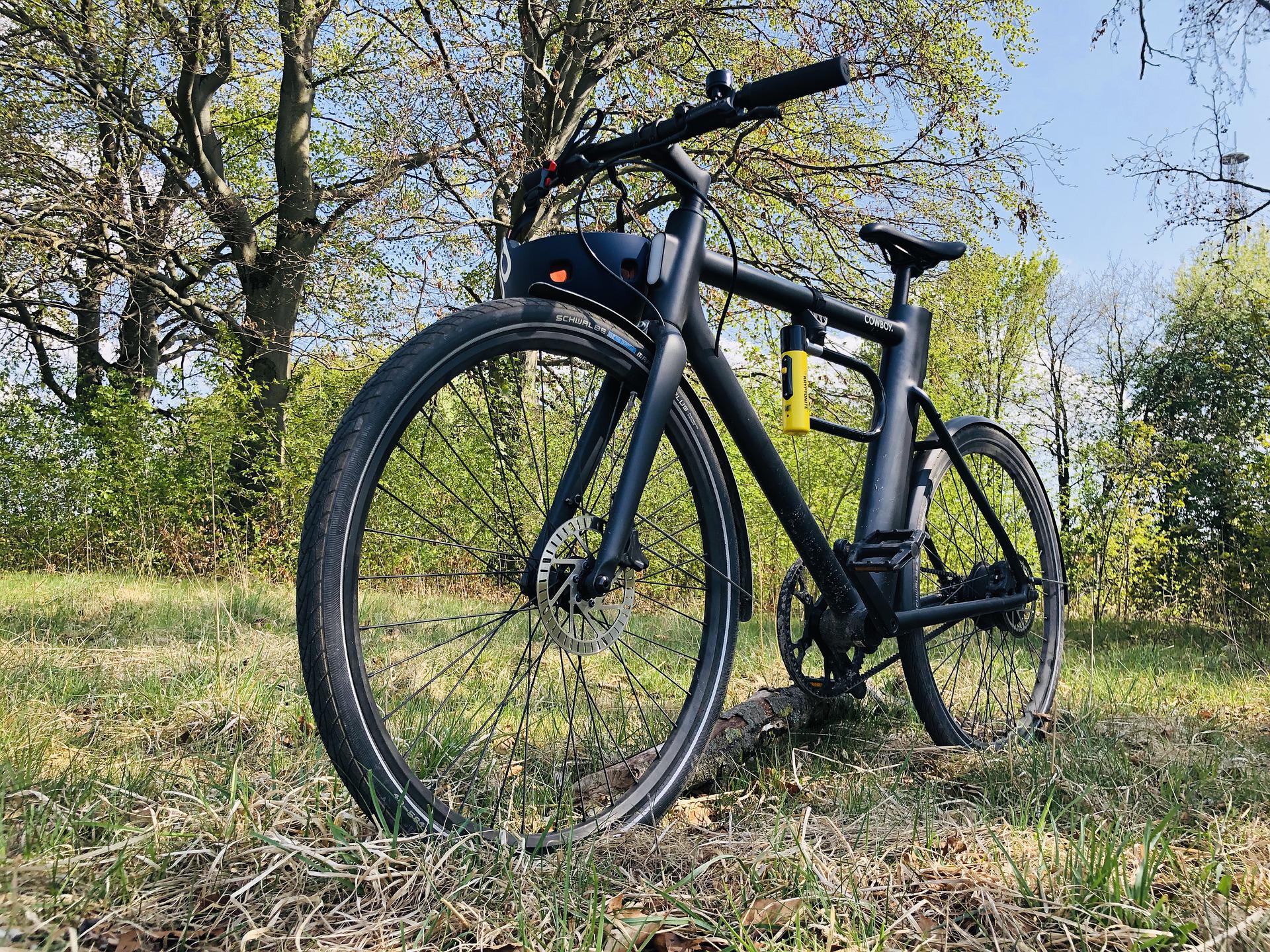

An electric bike, also known as an e-bicycle or e-bike, is a bicycle with an incorporated electric motor to assist with propulsion. This guide will walk you through the process of building your own electric bicycle, covering everything from selecting components to final installation.
1. Introduction
Electric bicycles are becoming increasingly popular due to their efficiency and ease of use. They combine the benefits of traditional cycling with the added power of an electric motor, making them ideal for commuting, leisure, and fitness. In this guide, we will focus on building a basic electric bicycle using a conversion kit.
2. Essential Components
Before you start building your electric bicycle, you will need the following components:
- Bicycle Frame: A sturdy frame, preferably a mountain bike with front disc brakes and wide handlebars.
- Electric Conversion Kit: This should include a motorized wheel hub, throttle, and controller.
- Battery: A 36V or 48V battery with a capacity of 10Ah or 20Ah is recommended for optimal performance.
- Charger: A compatible charger for your battery type.
- Wires and Connectors: For connecting the battery, motor, and controller.
- Tools: Basic tools such as wrenches, screwdrivers, tire levers, and a bike stand.
3. Steps to Build an Electric Bicycle
Step 1: Select the Right Bicycle
Choose a mountain bike or a sturdy bicycle with the right frame size for your needs. Ensure it has front disc brakes for better stopping power.
Step 2: Acquire an Electric Conversion Kit
Purchase an electric bike conversion kit that includes a hub motor wheel, throttle, and controller. Make sure the wheel size matches your bicycle's existing wheels for easy replacement.
Step 3: Choose Your Battery
Select a compatible battery (36V or 48V) with a suitable amp-hour rating. Ensure it comes with a charger.
Step 4: Remove the Existing Wheel
Using your tools, remove the front wheel from the bicycle. If you are replacing the rear wheel, follow the appropriate procedures for your brake type.
Step 5: Transfer Tires and Tubes
Transfer the tire and inner tube from the old wheel to the new hub motor wheel. Use tire levers to make the process easier.
Step 6: Install the New Wheel
Install the hub motor wheel onto the bicycle and reconnect the brake components. Adjust the chain if you are replacing the rear wheel.
4. Final Installation
Step 7: Connect the Controller and Throttle
Mount the controller to the frame of the bike. Connect the throttle to the handlebars for easy access.
Step 8: Wire the Battery
Connect the battery to the controller and throttle according to the provided wiring diagram. Ensure connections are secure and insulated.
Step 9: Secure the Battery
Mount the battery on the frame, ideally in place of a water bottle holder, for balanced weight distribution.
Step 10: Test and Adjust
Check all connections, adjust brakes, and ensure everything is secure before taking your electric bicycle for a test ride.
5. Maintenance Tips
To ensure the longevity of your electric bicycle:
- Regularly check tire pressure and brakes.
- Keep the battery charged and stored in a cool place.
- Inspect electrical connections for wear and tear.
- Clean the bike regularly to prevent rust and corrosion.
6. Frequently Asked Questions (FAQ)
What is the maximum speed of an electric bicycle?
Most electric bicycles can reach speeds of 25 to 32 km/h, but powerful models can exceed 45 km/h.
How long does the battery last?
The lifespan of a battery depends on usage and charging habits, but it typically lasts between 500 to 1,000 charge cycles.
Can I ride my electric bike without the motor?
Yes, electric bicycles can be ridden like traditional bikes without using the electric motor.
Are there legal restrictions for electric bicycles?
Yes, regulations vary by location regarding motor power and speed limits for electric bicycles. It's important to check local laws.
How do I charge my electric bicycle battery?
Connect the charger to the battery according to the manufacturer's instructions and plug it into a compatible outlet.
